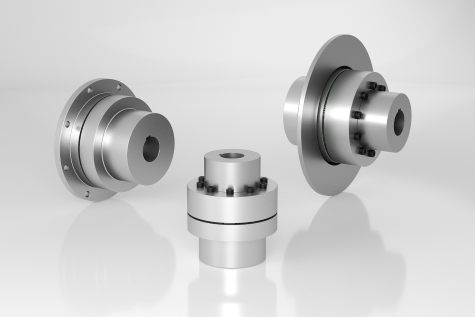

ringfeder TNZ 系列齿轮联轴器

由钢制成的扭转刚性齿轮联轴器

非常紧凑的设计导致高功率密度

补偿角度、径向和轴向轴偏移

如果使用特殊密封件，则适用于高达 +120 °C 的温度

提供分体式套筒（ZCA / ZCB - ZCA 型号系列也可提供 ZCB 设计）和单件式套筒 (ZCH)

无需移动耦合机器即可更换弹性 O 型圈

最大孔径 270 毫米

扭矩高达 T Kn = 195,000 Nm / T Kmax = 390,000 Nm

最高转速n max = 6,000 rpm

ringfeder TNZ 系列齿轮联轴器

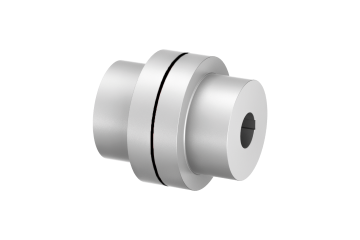

齿轮联轴器 TNZ

RINGFEDER  TNZ 系列（前身为 TSCHAN ® TNZ 和 POSIFLEX ® ）的扭转刚性和低背隙齿轮联轴器

由高强度钢制成，并在全球所有必须从轴到轴传递极高扭矩的工业领域证明了自己的实力.

其中包括特别重载的应用，例如直接驱动输送系统、搅拌机、轧机或辊道。

作为软轴连接，我们的 RINGFEDER ®齿轮联轴器通过带冠状齿的轮毂积极传递扭矩，这些轮毂始终与直齿套啮合。

它们的特点是功率密度高，并且根据联轴器变型，还适用于有效补偿轴向、径向和角轴不对中。

采用超高压添加剂的油脂润滑，可实现最小恢复力，从而保证可靠、无磨损的运行。

我们独特的模块化系统为用户在装配精确匹配的联轴器设计时提供了的灵活性

合适的组件，例如制动盘或制动鼓和扭力轴，可以适应特定的要求。

联轴器外壳有一个直的内齿，而轮毂有一个带有可变半径的外齿。

因此，轮毂可以在外壳内进行空间移动，从而在规定的公差范围内补偿相邻轴端的角度、径向和轴向轴错位。

根据联轴器类型和尺寸，标准啮合允许每个啮合平面的角度偏差高达 0.5 度，轴向移动数毫米。

最大可能的径向轴位移取决于两个齿平面之间的距离。

其他齿形几何形状可用于进一步的特定应用。

型号示例:

RFN8006 6x9、    RFN8006 7x10、  RFN8006 8x11、  RFN8006 9x12

RFN8006 10x13、RFN8006 11x14、RFN8006 12x15、RFN8006 13x16

RFN8006 14x18、RFN8006 15x19、RFN8006 16x20、RFN8006 17x21

RFN8006 18x22、RFN8006 19x24、RFN8006 20x25、RFN8006 22x26

RFN8006 24x28、RFN8006 25x30、RFN8006 28x32、RFN8006 30x35

RFN8006 32x36、RFN8006 35x40、RFN8006 36x42、RFN8006 38x44

RFN8006 40x45、RFN8006 42x48、RFN8006 45x52、RFN8006 48x55

RFN8006 50x57、RFN8006 55x62、RFN8006 56x64、RFN8006 60x68

RFN8006 63x71、RFN8006 65x73、RFN8006 70x79、RFN8006 71x80

RFN8006 75x84、RFN8006 80x91、RFN8006 85x96、RFN8006 90x101

RFN8006 95x106  RFN8006 100x114、RFN8006 110x124、     RFN8006

120x134

RFN8006 130x148、RFN8006 140x158、RFN8006 150x168、RFN8006

160x178

RFN8006 170x191、RFN8006 180x201、RFN8006 190x211、RFN8006

200x224

RFN8006 210x234、RFN8006 220x244、RFN8006 230x257、RFN8006

240x267

RFN8006 250x280、RFN8006 260x290、RFN8006 270x300、RFN8006

280x313

RFN8006 290x323、RFN8006 300x333、RFN8006 320x360、RFN8006

340x380

RFN8006 360x400、RFN8006 380x420、RFN8006 400x440、RFN8006

420x460                    RFN8006 440x480

RFN7012 19x47、RFN7012 20x47、RFN7012 22x47、RFN7012 24x50

RFN7012 25x50、RFN7012 28x55、RFN7012 30x55、RFN7012 32x60

RFN7012 35x60、RFN7012 38x65、RFN7012 40x65、RFN7012 42x75

RFN7012 45x75、RFN7012 48x80、RFN7012 50x80、RFN7012 55x85

RFN7012 60x90、RFN7012 65x95、RFN7012 70x110、RFN701275x115

RFN7012 80x120、RFN7012 85x125、RFN7012 90x130、RFN701295x135

RFN7012 100x145、RFN7012 110x155、RFN7012 120x165、RFN7012

130x180

RFN7012 140x190、RFN7012 150x200、RFN7012 160x210、RFN7012

170x225

RFN7012 180x235、RFN7012 190x250、RFN7012 200x260、RFN7012

220x285

RFN7012 240x305、RFN7012 260x325、RFN7012 280x355、RFN7012

300x375

RFN7012 320x405、RFN7012 340x425、RFN7012 360x455、RFN7012

380x475

RFN7012 400x495、RFN7012 420x515、RFN7012 440x545、RFN7012

460x565

RFN7012 480x585、RFN7012 500x605

RFN7014 70x120、RFN7014 80x130、RFN7014 90x140、RFN7014

100x160

RFN7014 110x170、RFN7014 120x180、RFN7014 130x190、RFN7014

140x200

RFN7014 150x210、RFN7014 160x230、RFN7014 170x240、RFN7014

180x250

RFN7014 190x260、RFN7014 200x270、RFN7014 220x300、RFN7014

240x320

RFN7014 260x340、RFN7014 280x370、RFN7014 300x390

RFN7013.1 20x47、RFN7013.1 22x47、RFN7013.1

24x50、RFN7013.1 25x50、RFN7013.1 28x55、RFN7013.1

30x55、RFN7013.1 32x60、RFN7013.1 35x60、RFN7013.1

38x65、RFN7013.1 40x65、RFN7013.1 42x75、RFN7013.1

45x75、RFN7013.1 48x80、RFN7013.1 50x80、RFN7013.1

55x85、RFN7013.1 60x90、RFN7013.1 65x95、RFN7013.1

70x110、RFN7013.1 75x115、RFN7013.1 80x120、RFN7013.1

85x125、RFN7013.1 90x130、RFN7013.1 95x135、RFN7013.1

100x145、RFN7013.1 110x155、RFN7013.1 120x165、RFN7013.1

130x180、RFN7013.1 140x190、RFN7013.1 150x200、

RFN7015.0 100x145、RFN7015.0 110x155、RFN7015.0

120x165、RFN7015.0 130x180、RFN7015.0 140x190、RFN7015.0

150x200、RFN7015.0 160x210、RFN7015.0 170x225、RFN7015.0

180x235、RFN7015.0 190x250、RFN7015.0 200x260、RFN7015.0

220x285、RFN7015.0 240x305、RFN7015.0 260x325、RFN7015.0

280x355、RFN7015.0 300x375、RFN7015.0 320x405、RFN7015.0

340x425、RFN7015.0 360x455、RFN7015.0 380x475、RFN7015.0

400x495、RFN7015.0 420x515、RFN7015.0 440x515、RFN7015.0

460x565、RFN7015.0 480x585、RFN7015.0 500x605、RFN7015.0

520x630、RFN7015.0 540x650、RFN7015.0 560x670、RFN7015.0

580x690、RFN7015.0 600x710、

RFN7110 8x15、RFN7110 9x16、RFN7110 10x16、RFN7110

11x18、RFN7110 12x18、RFN7110 14x23、RFN7110 15x24、RFN7110

16x24、RFN7110 18x26、RFN7110 19x27、RFN7110 20x28、RFN7110

22x32、RFN7110 24x34、RFN7110 25x34、RFN7110 28x39、RFN7110

30x41、RFN7110 32x43、RFN7110 35x47、RFN7110 38x50、RFN7110

40x53、RFN7110 42x55、RFN7110 45x59、RFN7110 48x62、RFN7110

50x65、RFN7110 55x71、RFN7110 60x77、RFN7110 65x84、RFN7110

质保一年
